Dimensions

The xViz Performance Flow provides the customization options for Dimensions through the Node Size and Padding options in the Display section.

Image 1: Dimensions

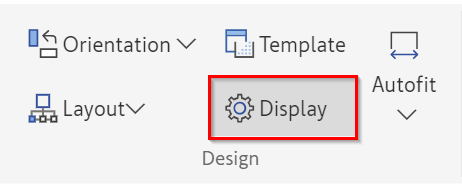

To use adjust Dimensions, Navigate to the “Display” option in the top ribbon.

Image 2: Display option in ribbon

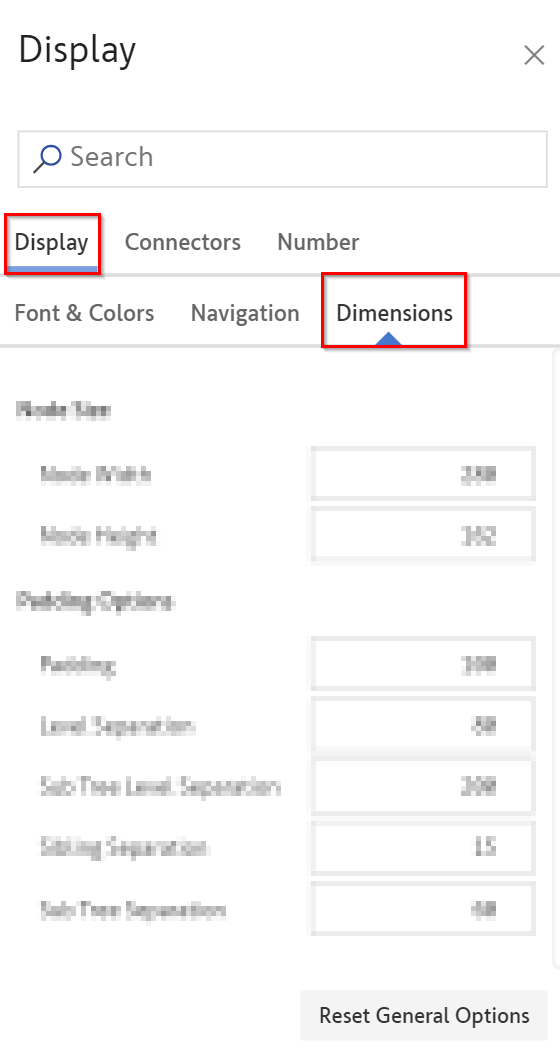

Click on “Display” Tab and navigate to the “Dimensions” option.

Image 3: Navigate to Dimensions option

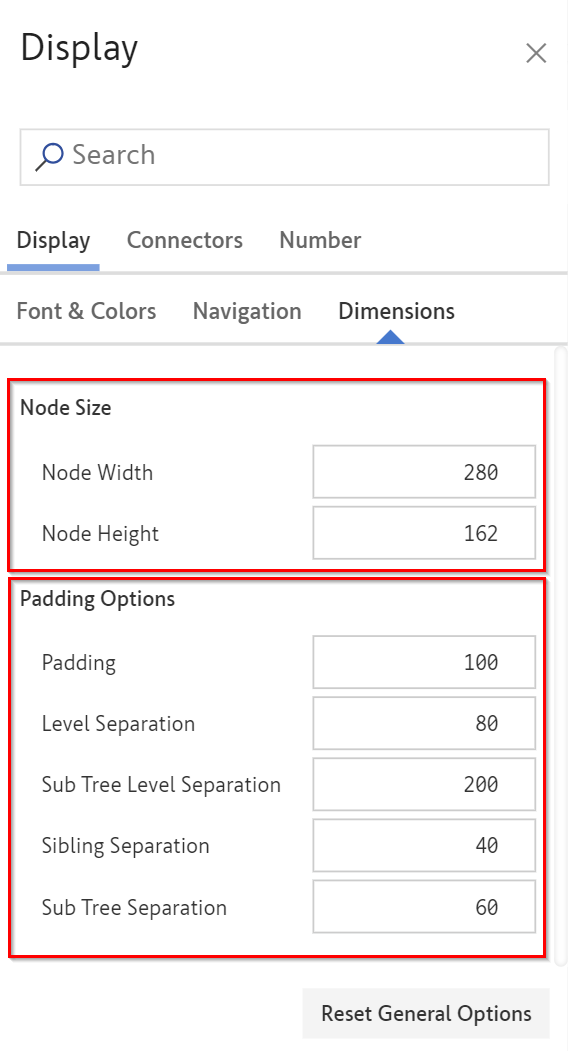

Adjust the “Node size” and “Padding” to suit your specific requirements.

Image 4: Adjust Node Size and Padding

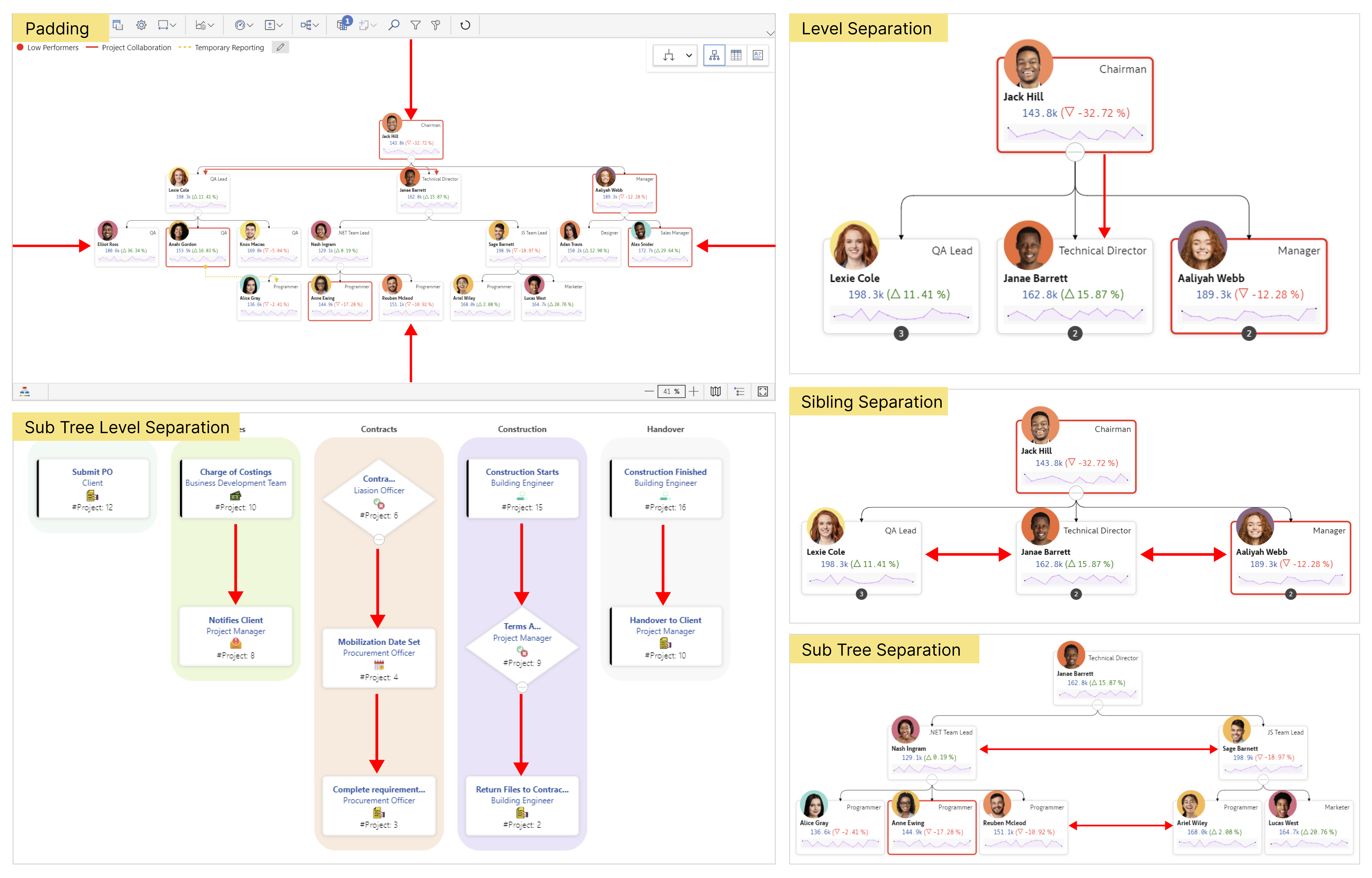

Overview of all padding options:

Padding Options
Description

Padding

Spacing between the main tree and the visual borders

Level Separation

Spacing between each parent and child

Sub Tree Level Separation

Spacing between parent and child nodes within the same group

Sibling Separation

Spacing between sibling nodes under the same parent

Sub Tree Separation

Spacing between neighboring nodes from different parents

After customizing the dimensions, the chart looks as shown in the image below:

Image 5: Dimensions
