Duration Data field

In a xViz Gantt Chart, it's possible to create Gantt Chart without an End Date column. Instead, we can use the project Duration to create the Gantt Chart.

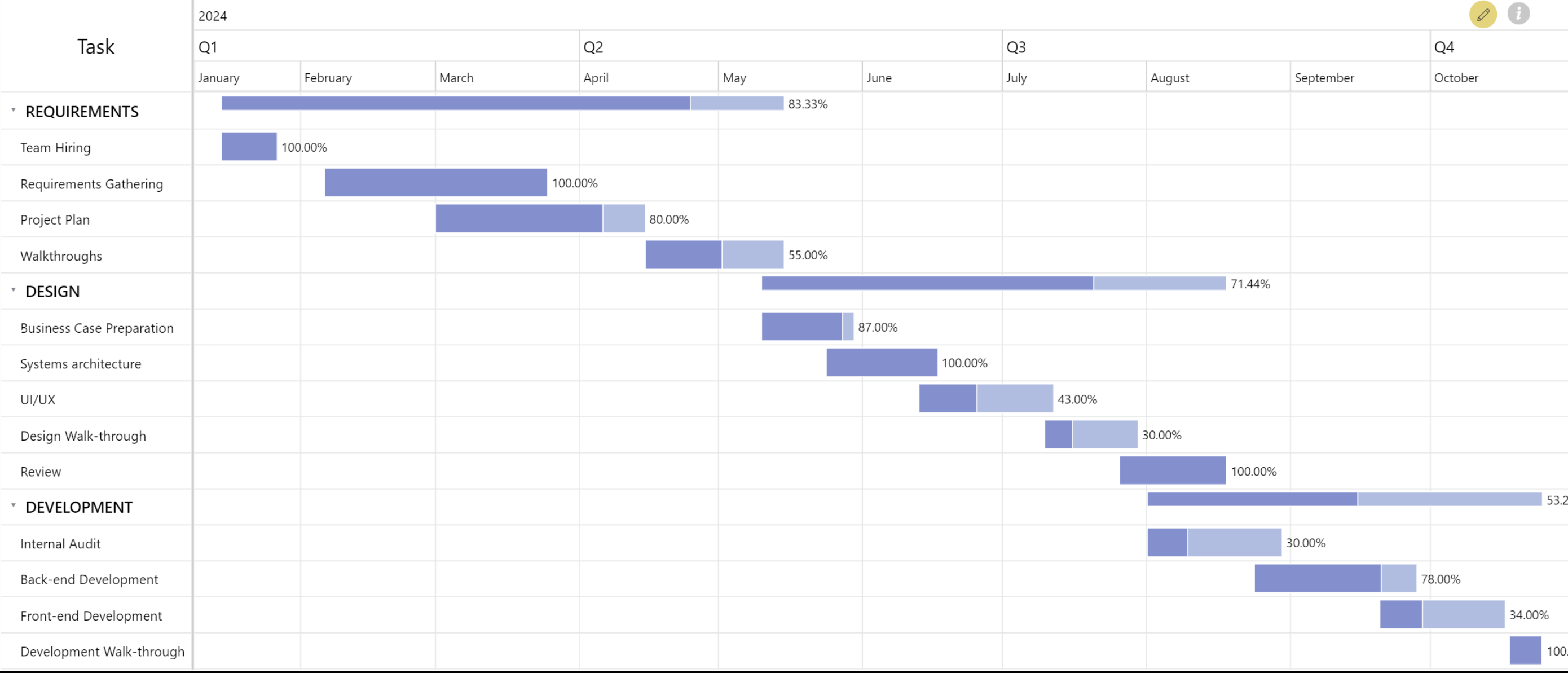

Image 1: xViz Gantt Chart created with using Duration data field

We have a dataset with an Actual Start Date and Duration column, but it does not include an Actual End Date column, as shown in the image below:

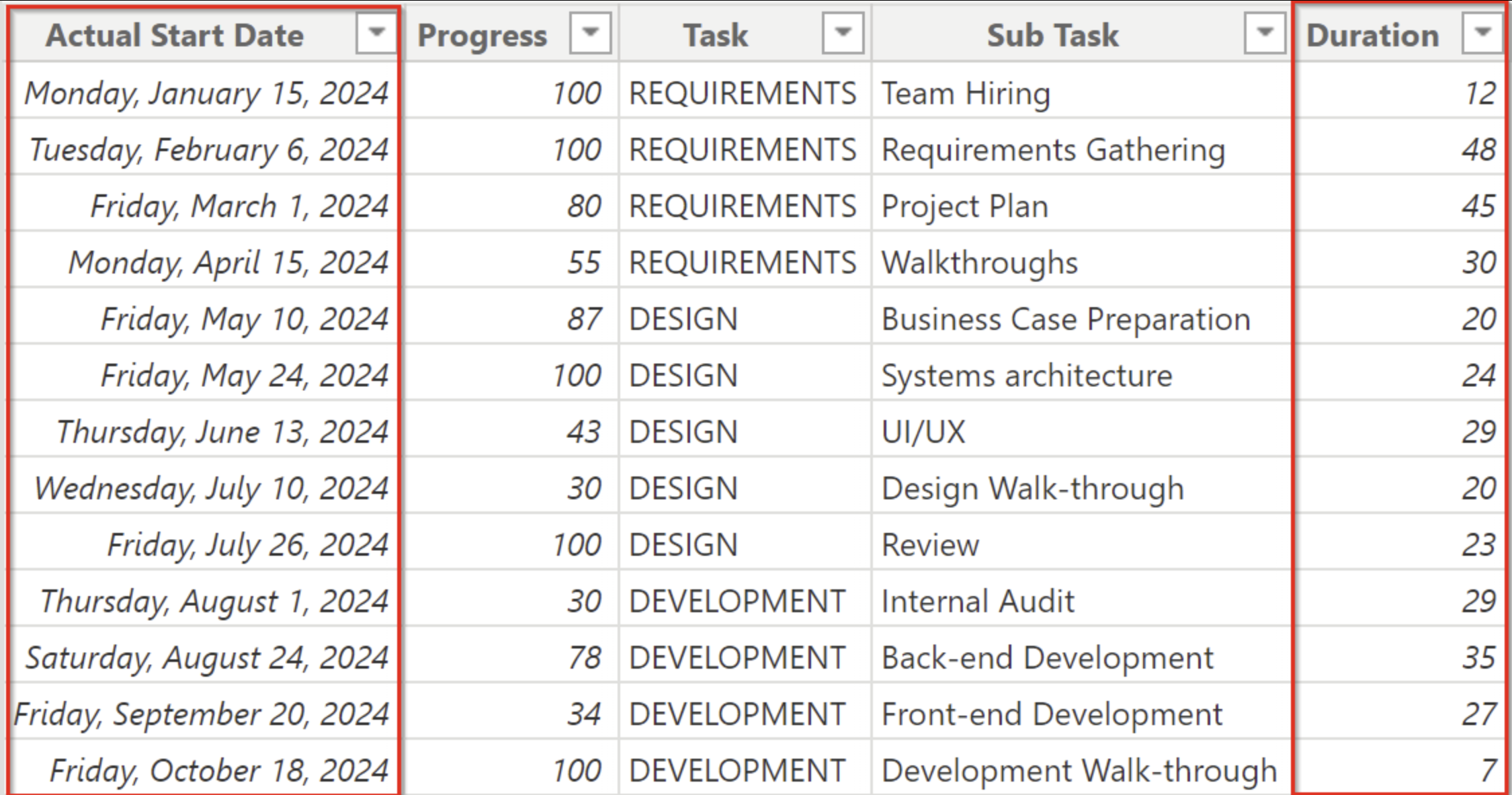

Image 2: Dataset

Now, populate the Actual Start Date and Duration columns into the Start Date and Duration fields, respectively.

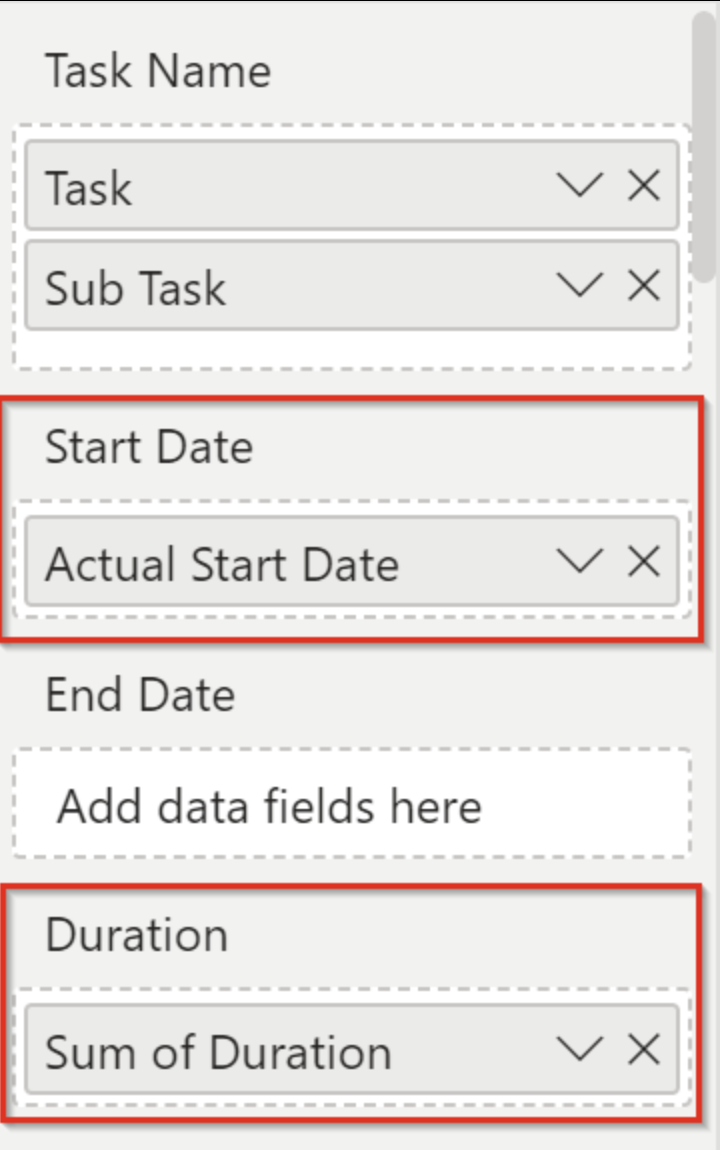

Image 3: Populate Start Date and Duration field

The Duration field can only be populated if the End Date data field is empty.

In the final result, the Gantt Chart is created without using the End Date and is displayed in the image below.

Image 1: xViz Gantt Chart created with using Duration data field
