# Sparkline Trends
In addition to showing the KPIs and Variance to a benchmark, we can also visualize the trend of a KPI.
Insert a Category in the ‘Sparkline’ data field which will be the X-axis:
Let’s also add a third metric for Employee Performance in the ‘Values’ data field:
By default, all the measures in the ‘Values’ field will be plotted in the Sparkline:

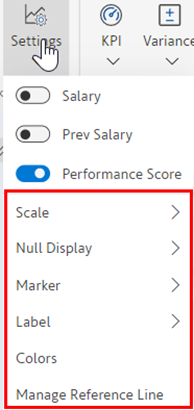

We can select the measures to be used in the Sparkline using the Sparkline ‘Settings’ in the top ribbon menu:

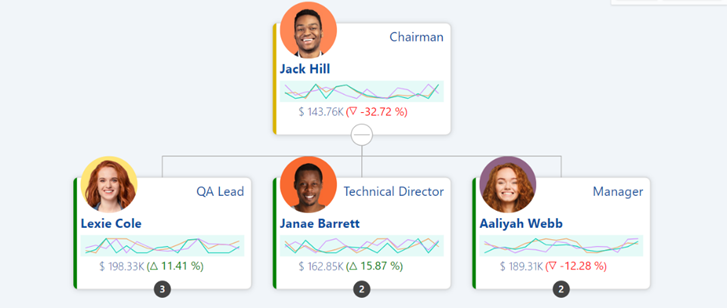

For our example, let’s plot only ‘Performance Score’ in the Sparkline as shown in the above settings. The visual now looks as shown below:
We can also change the ‘Chart Type’ to change the line chart of the sparkline to an alternate visualization:
Additional configurations for the sparkline are provided here:
For our example, we have set the Chart Type to Area Chart. And enabled Marker for all datapoints.
---
