Bar Fill Color

The xViz Gantt Chart allows you to change the color of the Parent bar or the Child bar or both using the diverse options from “Color By.”

The options are:

  1. All:

When we select the option “All,” we can set the color for all Parent bars and all Child bars. These are the available options:

  • Parent Fill Color

  • Parent Track Color

  • Child Fill Color

  • Child Track Color

Image 1: Data Fields to configure ColorBy Options

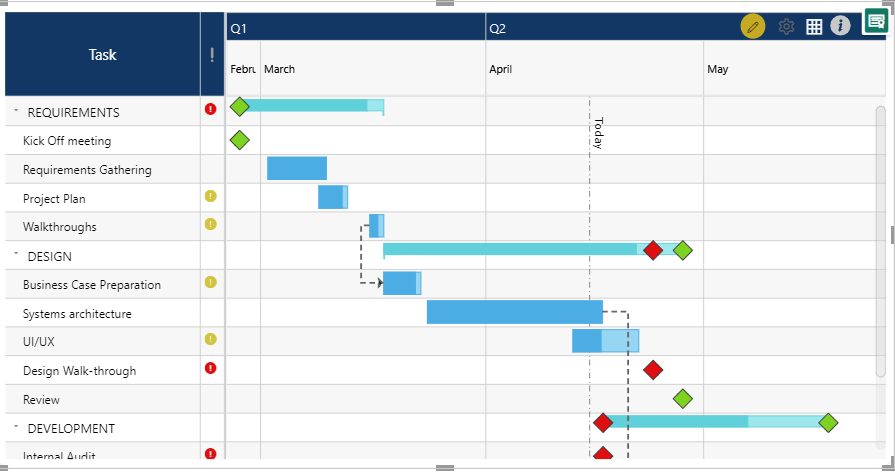

Image 2: Bar Fill color in xViz Gantt Chart

Example: All the parent bars “REQUIREMENTS’, “DESIGN”, “DEVELOPMENT" are set to the same color cyan green and all the child bars are set to the same color blue.

  1. Parent:

We can set the bar colours by Parent grouping.

The Field options are:

  • Parent Fill color

  • Parent Track color

Choose one field parameter at a time to set the colors for each of the parameters.

Image 3: Data Fields to configure Color by Options
Image 4: Bar Colors by parent grouping in xViz Gantt Chart

Example: The color of the “REQUIREMENTS” parent bar and all its child bars is set to Red as selected.

For “DESIGN” parent bar and all its child bar is set to Pink as selected.

For “DEVELOPMENT” parent bar and all its child bar is set to Yellow as selected.

  1. Parent-Child:

We can define the bar colors for parent and child bars for every Parent-Child grouping.

The Field Options are:

  • Child Fill Color

  • Child Track Color

  • Parent Fill Color

  • Parent Track Color

  • Planned Fill Color

Choose one field parameter at a time to set the colors for each of the parameters.

Image 5: Bar colors by grouping parent-child in xViz Gantt Chart

Example: The bar fill color is grouped by Parent-child with the field option as Parent Fill Color.

  • The color of the “REQUIREMENTS” parent bar (Parent Fill Color) set to Red as selected.

  • For “DESIGN” parent bar (Parent Fill Color) is set to Pink as selected.

  • For “DEVELOPMENT” parent bar (Parent Fill Color) is set to Yellow as selected.
